Portable Rolling Road for Professionals

DynoPro is a portable road dynamometer used to measure power, torque, acceleration and other parameters of motor vehicles. Measurements can be made on vehicles with any type of drive train system. This dynamometer is designed to be used by professionals in a wide range of road and motorsport vehicles.

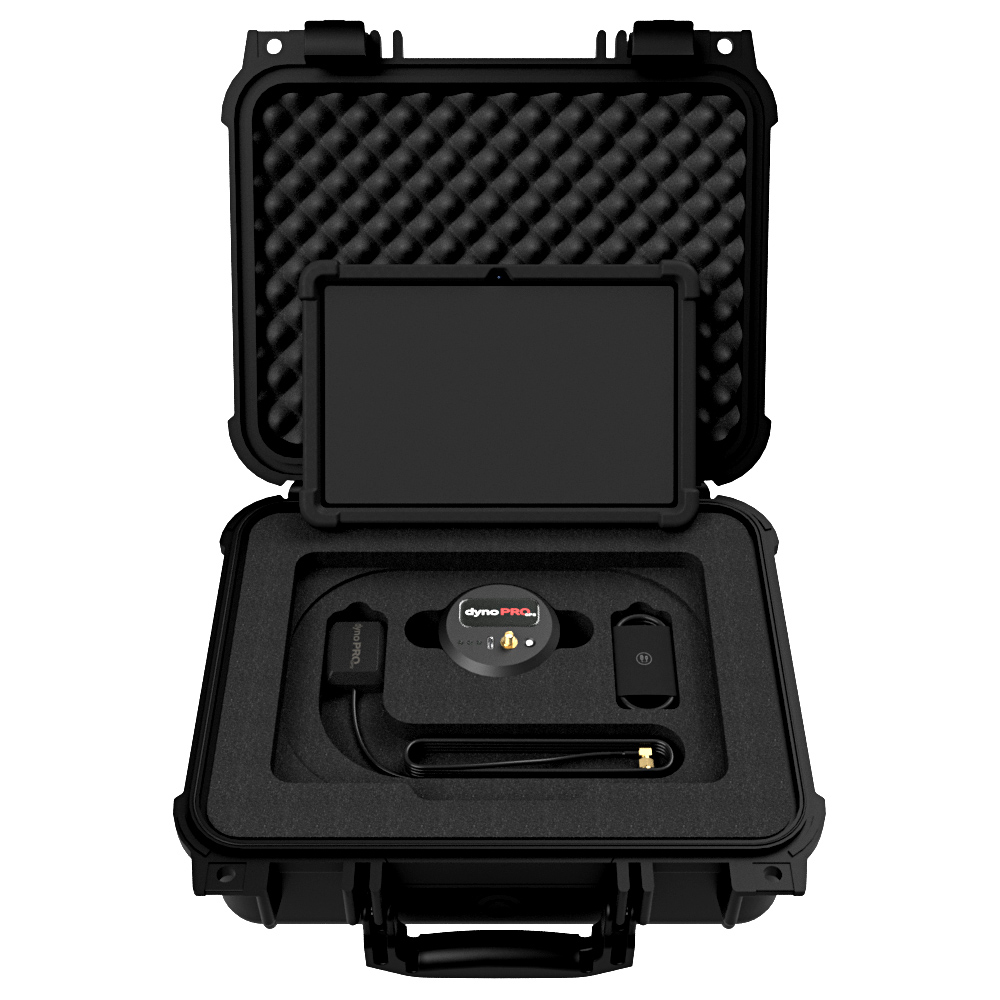

What’s in the box?

Discover a complete, all-in-one and versatile solution. Fast and hassle-free to use, guaranteed to be effective. Portable road dynamometer for professional use.

A – Protective case with foam insert
B – Tablet (with DynoPRO app) in a protective case, charger

C – Dyno probe – mounted to the vehicle wheel

D – OBD2 adapter

E – Dyno probe socket kit – 17mm, 19mm, 21mm, 22mm
F – Bolt with M12 thread for mounting the Dyno Probe and an M10 screw with spring washer

G – 8mm, 10mm Allen key and 14mm spanner

All elements are made on numerical CNC machine tools.
Fitting elements are made of heat-treated quality steel.

dynoPRO - Fast and Effective Solution

The device its characterized by a compact housing made of aluminium and plastic.

Installation of the device takes about 2 minutes to be ready for measurement.

For the measurement, the vehicle weight and tire size are required (in the format e.g. 205/55/16 or circumference in mm).

The device has a built-in weather station for measuring temperature and atmospheric pressure (-40 ° + 100 °, 300-1100hpa). In addition, the device can read the atmospheric temperature from the OBD2 connector.

Communication with the DYNO probe and the OBD2 adaptor is made by the Bluetooth standard. Dyno probe has a built-in battery that allows about 10 hours of operation. The OBD2 adaptor is powered from the OBD2 connector.

In addition to the standard power measurement, the device enables logging of additional engine parameters via the OBD2 connector, e.g. boost pressure, pressure on the injection rail, exhaust gas temperature, etc., and placing them on a graph in relation to the power or torque graph.

The software, apart from measuring power, enables diagnostics of the engine controller in the EOBD standard (identification of the engine controller and diagnostic protocol, reading and erasing of DTC errors, measurement of actual values).

The measurement results are presented in 3 variants. Actual, DIN70020, SAE J1349 and EEC. Measurement repeatability error under the same procedure and conditions below 1%.

The software has no time and quantity operation limitations.
Free software updates. Technical support. 2 years Warranty.

Unfold

Installation of the device takes only 2 minutes!

Fast assembly and disassembly of the dynamometer allows you to take measurements anywhere and anytime, which will be most appreciated by mobile workshops.

Assembly and Measurement with dynoPRO Dynamometer

The assembly of the device consists of 6 simple steps:
  1. selecting the appropriate size of the cap for the wheel bolt
  2. screwing the socket together with the pin to the bolt on the rim
  3. probe roughly centred on circle and screwed
  4. turning on the probe
  5. plugging the OBD2 connector into the vehicle socket
  6. switching on the tablet and launching the software.

Measurement of power in most cases requires about 1 km of the road section, possibly without gradients.

The measurement procedure consists of the following steps:
  1. selecting the MEASUREMENT menu
  2. determining the profile of the measured vehicle (name, vehicle weight, tire size, RPM engine rotation signal sources – usually reading from OBD2 or calibrated)
  3. Power run consisting of:
  • start of measurement in the software

  • smooth start with the vehicle in 1st and 2nd gear

  • put in 3rd gear and quickly accelerate to the end of the engine rpm range, then put in neutral and the program will start counting down 10s to calculate rolling resistance and other

  • software will calculate power and torque once finished it willpresentit to the user.
  1. Generating measurement report (software generate report in PDF,JPG or CSV format and allows to share it through e-mail etc..

d

Unfold

dynoPRO User Interface and Sample Measurements

In the kit you will find

Tablet
10″ screen, 16GB, WiFi, LTE with dynoPRO software and charger.

The tablet included in the set has a durable aluminium casing and a plastic protector. Along with the tablet, there is a charger with a micro USB connector which, in combination with a mini USB adapter, allows you to charge the Dyno probe.

Unfold
Dyno Probe
Bluetooth Wireless Dyno probe, with built-in weather station.

The Dyno probe is made of aluminium and flex steel. Communication takes place in the Bluetooth standard. It has a built-in speed, climate, temperature and atmospheric pressure sensors. The probe is battery powered; its working time is about 10 hours. The battery is charged via the mini USB connector, the adapter is included in the set with the charger. A tablet charger is also used to charge the probe.

Unfold
OBD Adapter
Bluetooth OBD2 Diagnostic Connector supporting over 10 diagnostic protocols.

The OBD2 adapter transmits the vehicle’s RPM signal and other actual parameters during the measurement in the Bluetooth standard. Apart from the power measurement mode, the probe enables diagnostics of passenger cars compliant with the OBD2 standard.

The probe enables identification of the engine controller and diagnostic protocol, reading and deletingfaults, real time measurement of available parameters from the engine controller. During the measurement, the user can choose any real time parameters, e.g. boost pressure in the intake manifold, engine temperature and others provided by the engine controller, and the program will automatically mark them on the power measurement graph.

Unfold
Accessories
A set of mounting accessories – 4 types of sockets for wheel bolts, allen keys and flat spanners.

8mm, 10mm Allen key and 14mm spanner.

A set of sockets for mounting the Dyno probe – 17mm, 19mm, 21mm, 22mm.

Bolt with M12 thread for attaching the Dyno probe and an M10 bolt with spring washer.

Unfold
Suitcase
Durable suitcase with a solid structure, made of polypropylene in combination with ABS.

Technical Specifications

Dyno Probe
  • weight: 180g
  • wireless connectivity: Bluetooth
  • power supply: Li-Ion 3.7V 1000 mAh battery
  • material: aluminum, steel
  • weather station: temperature from -40 ° C to 105 ° C, pressure from 500hPa to 1100hPa
OBD2 Adapter
  • weight: 50g
  • wireless connectivity: Bluetooth
  • communication with the vehicle: CAN, LIN, Single Wire CAN
  • power supply: 12V DC from the vehicle
  • material: ABS plastic
Tablet
  • weight: 655g
  • 9.6 inch screen, IPS, 1280 x 800 (HD)
  • Qualcomm MSM8917 Quad Core A53 CPU
  • Android ™ N operating system
  • ROM: 16 GB, RAM: 2 GB
  • GPS, A-GPS, GLONASS, BDS
  • LTE, UMTS, GSM, WIFI / WAPI 802.11 a / b / g / n @ 2.4GHz, 5GHz, Bluetooth connectivity
  • main camera: 5 Mpx, autofocus, front: 2 Mpx, autofocus
  • battery 3.7 V 4 800 mAh
  • 5V / 1A charger
Suitcase
  • weight: 2.5 kg
  • external dimensions: 40.6 x 33 x 17.4 cm (L x W x H)
  • material: polypropylene + ABS
Additional Information
  • Normalization of measurements
    1. SEA J1349
      DIN 70020
      EWG 80/1269
  • Supported protocols
    1. ISO 15765-4 (CAN 250/500 kbps, 11/29 bit)
      ISO 14230-4 (KWP 2000)
      ISO 9141-2
      ISO 15765
      ISO 11898
      SAE J1850 VPW
      SAE J1850 PWM
      SAE J1939 OBD (trucks and vans)
      Single-Wire CAN (SW-CAN)
      Medium-Speed CAN(MS-CAN)
      Hight-Speed CAN( HS-CAN)
  • Measurement repeatability error: <± 1%
  • Free software updates
  • Total weight of the set: 5 kg
  • Technical support
  • Warranty 24 months
Files to Download
User Manual v2.3
Do you have any questions?

dynoPRO is a great alternative / supplement to the chassis dynamometer.

Full Set price: £ 3 299 inc. VAT
